Home › Platforms › LITE Series › WT610M
LITE Series

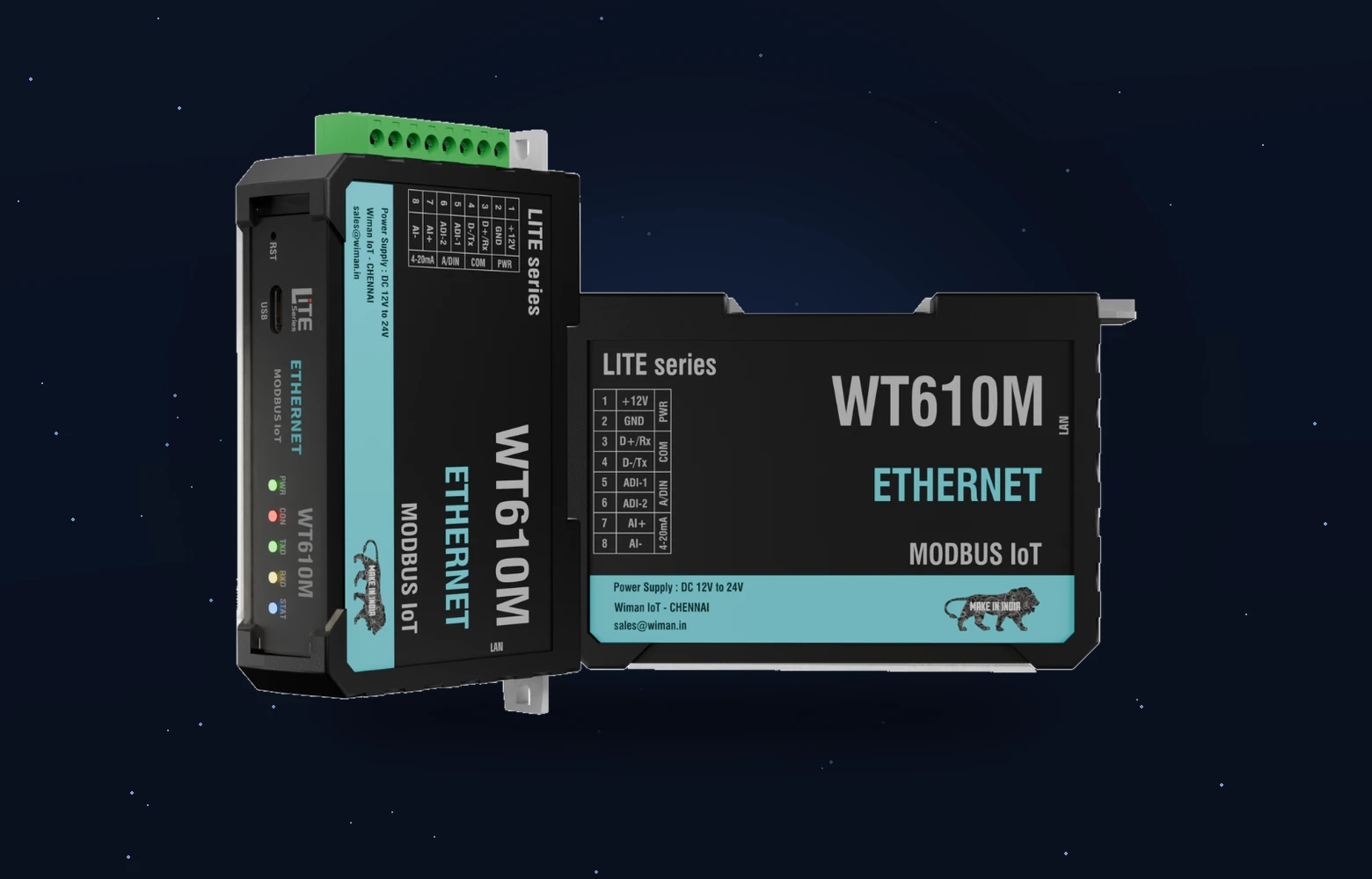

Industrial Ethernet IoT Gateway — LITE
Cost-effective RS485 / TCP Modbus to Ethernet gateway — one shared LAN port carries Modbus TCP and event data to your server, with inbuilt logging and single-server delivery.
SHARED LAN|SINGLE SERVER|STORE & FORWARD|LOCAL CONSOLE
32
Max Slaves(RS485 Modbus)
1,800
Registers(Dynamic Read)
10/100 Mbps
Ethernet(Auto Negotiation)
-30°C to +85°C
Wide Temp. Operation
12 – 24V DC
Wide Voltage Input
DIN / Wall Mount
Same Device — Both Options
One device — both mounting options. No separate variant required.
Mechanical drawings & pin details are included in the datasheet.
Configuration software, device manuals, user guides, 24/7 chat support, order tracking and more. Login to Client Portal for secure access.
Login to Client PortalRugged & Reliable
Industrial Grade
OEM Ready
Long Term Support
Specifications
| Ethernet | |
|---|---|
| Interface | RJ45 – 10BASE-T / 100BASE-TX (Auto) |
| Speed | 10/100 Mbps, Half/Full Duplex (Auto Negotiation) |
| TCP/IP Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP |
| Modbus Protocol | Modbus RTU Master, TCP Modbus Master |
| Configuration | Web Config, Serial/IP Utility, IP Commands |
| Serial | |
|---|---|
| Interface | RS232 / RS485 |
| Baud Rates | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps |
| Data Bits | 7 / 8 bits |
| Parity | None / Even / Odd |
General Specifications
| Connector | Micro-Fit 5.0 – 8 Pin (2 Power / 2 Modbus / 3 IO) |
| Dimensions (L×W×H) | 100 × 85 × 24 mm |
| Weight | 160 g |
| Operating Voltage | 12–24 V DC |
| Temperature | -30 °C to +85 °C |
General Communication
| TX Protocol | Configurable TCP / HTTP / MQTT |
| HTTP Methods | Configurable GET / POST |
| Format | Configurable JSON / CSV |
| Server Support | Single Server |
| Device Config | Serial / IP Utility / Web / Server IP Commands |
| OTA / Updates | IP Utility, Web Config, IP Commands |
| LoRa Support | Inbuilt LoRa – Wireless RS485 |

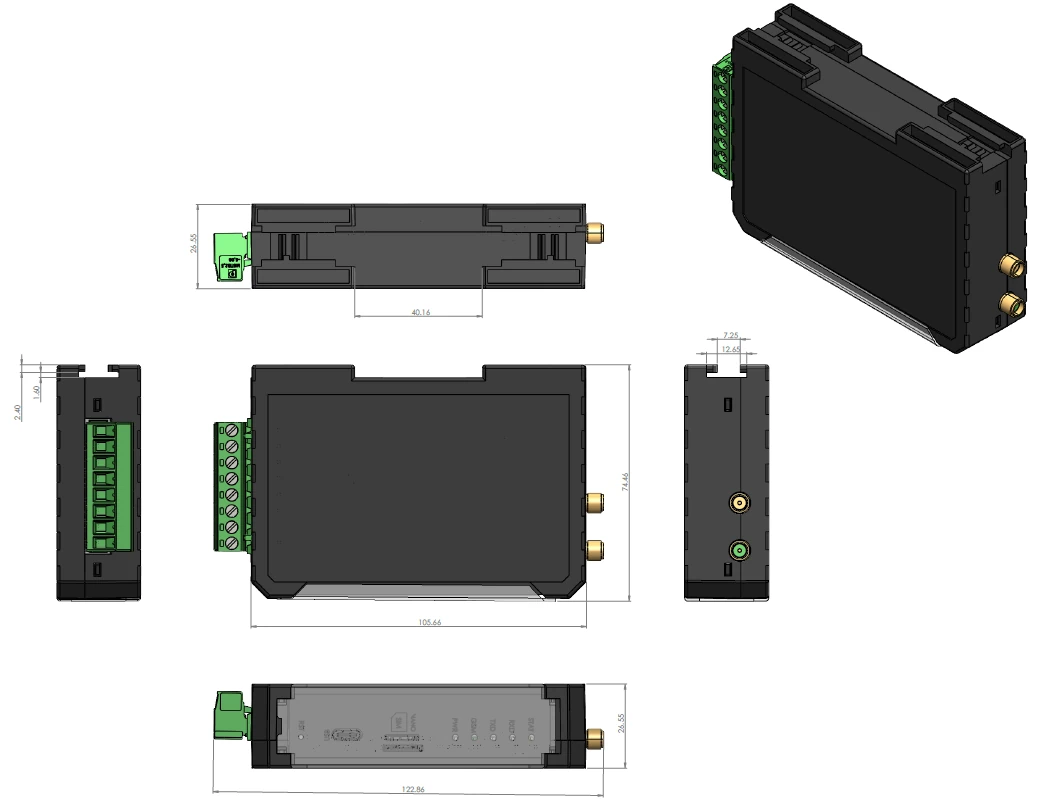

Mechanical Dimensions
Interfaces
Power Supply
12–24 V DC (Reverse Polarity Protection)
Analog / Dig. In
2× (0–24 V) Analog/Digital Voltage Input
Digital Input
2× (0–24 V) Pure Digital Input
Current Input
1× (4–20 mA) Current Input
Relay Output
1× Relay Output
RS485 Port
Multiple Modbus Slave Device Connection
USB Port
Type-C – PC Utility Configuration
LED Indicators
Power / IP / Modbus Status
LAN Port
TCP Modbus Slaves & Event Transfer to Cloud
